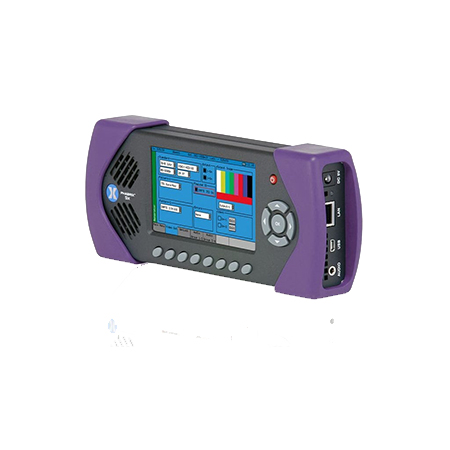

Phabrix SxD

With its impressive 4.3″ 16:9 TFT monitor and easy to control menu buttons, the PHABRIX SxD has been designed specifically for the professional broadcast engineer with dual stream requirements.
The PHABRIX SxD supports 3G-SDI, HD-SDI, SD-SDI video plus dual link support for two 1.485 Gbps SDI streams.
Configured with a full range of test patterns, both static and animated, the SxD is ideal for studio, OB, and lab environments operating from either the internal battery or via the included mains adaptor.
Auto Bi-level, Tri-level and SDI genlock with cross lock capability.
Combined audio features including support for 16 channels of embedded audio complete the suite of functions.
With built-in USB and Ethernet connectivity for remote operation, the PHABRIX SxD sets a new standard in portable video/audio signal test generation and monitoring.

PHSXDL – Details

• Features:

  • 3 IN 1, GENERATOR/ANALYSER/MONITOR
  • 3G-SDI, HD-SDI, SD-SDI DUAL LINK
  • HIGH QUALITY 16:9 PICTURE MONITOR
  • SUPERIOR EASE OF USE
  • 32+ VIDEO TEST SIGNALS STANDARD
  • MOVING ZONE PLATE STANDARD
  • TEXT AND LOGO IDENT
  • 16 CHANNEL EMBEDDED AUDIO
  • AUTO GENLOCK BI/TRI/SDI CROSS LOCK
  • 16 CHANNEL AUDIO METERING
  • WAVEFORM MONITOR
  • VECTORSCOPE
  • RUGGED RELIABILITY
  • ETHERNET BASED REMOTE OPERATION
  • BATTERY + MAINS POWER
